MQR Profiling and Boring Bars

Internal thread turning bar partial profile inquiry form

Do you need a customized tiny solid carbide boring bar? Please fill out this form.

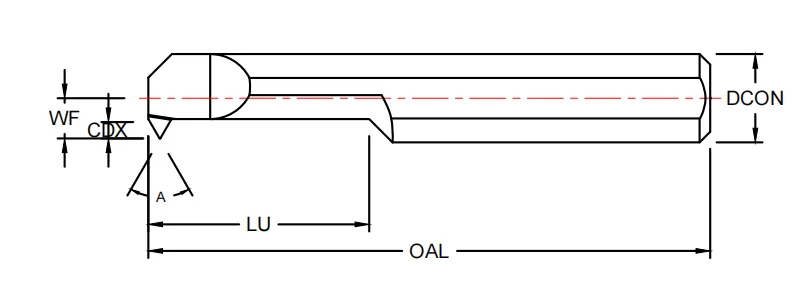

DCON	Ordering Code	LU	RE	CDX	DMIN	OAL	Holder
4	MQR3.0 R0.05 L9	9	0.05	0.7	2.9	50	SHB…D4
	MQR3.0 R0.1 L9	9	0.1	0.7	2.9	50
	MQR3.0 R0.15 L9	9	0.15	0.7	2.9	50
4	MQR4.0 R0.05 L10	10	0.05	1	3.9	50	SHB…D4
	MQR4.0 R0.1 L10	10	0.1	1	3.9	50
	MQR4.0 R0.2 L10	10	0.2	1	3.9	50
	MQR4.0 R0.2 L15	15	0.2	1	3.9	50
5	MQR5.0 R0.05 L15	15	0.05	1.2	4.9	50	SHB…D5
	MQR5.0 R0.1 L15	15	0.1	1.2	4.9	50
	MQR5.0 R0.2 L15	15	0.2	1.2	4.9	50
	MQR5.0 R0.2 L20	20	0.2	1.2	4.9	50
6	MQR6.0 R0.05 L15	15	0.05	1.6	5.9	50	SHB…D6
	MQR6.0 R0.1 L15	15	0.1	1.6	5.9	50
	MQR6.0 R0.2 L15	15	0.2	1.6	5.9	50
	MQR6.0 R0.2 L22	22	0.2	1.6	5.9	50
8	MQR8.0 R0.1 L25	25	0.1	2.1	7.9	60	SHB…D8
	MQR8.0 R0.2 L25	25	0.2	2.1	7.9	60
