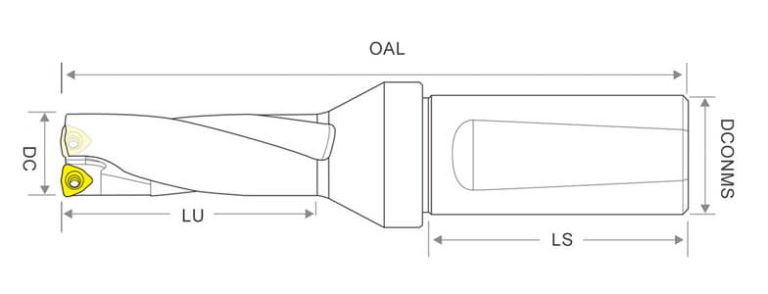

| Model No | Size and shape | Insert | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| DL | LU | OAL | DC | DCONMS/LS | ||||
| SP02—3D—8.5—C20 A | 3D | 25.5 | 93.5 | 8.5 | 20/50 | SPMG020102 | M1.8x3.1 L | T6 |
| SP02—3D—9—C20 A | 3D | 27 | 95 | 9 | 20/50 | |||
| SP02—3D—9.5—C20 A | 3D | 28.5 | 96.5 | 9.5 | 20/50 | |||
| SP04—3D—10—C20 A | 3D | 30 | 98 | 10 | 20/50 | SPMG040202 | M1.8x4L | |
| SP04—3D—10.5—C20 A | 3D | 31.5 | 99.5 | 10.5 | 20/50 | |||
| SP04—3D—11—C20 A | 3D | 33 | 100.5 | 11 | 20/50 | |||
| SP04—3D—11.5—C20 A | 3D | 34.5 | 101.5 | 11.5 | 20/50 | |||
| SP04—3D—12—C20 A | 3D | 36 | 103 | 12 | 20/50 | SPMG040202 | M1.8x4L | |
| SP04—3D—12.5—C20 A | 3D | 37.5 | 105 | 12.5 | 20/50 | SPMG040204 | M2.0x5.5L | |
| SP05—3D—13—C20 A | 3D | 39 | 106 | 13 | 20/50 | SPMG050204 | M2.2x5.5L | |
| SP05—3D—13.5—C20 A | 3D | 40.5 | 107.5 | 13.5 | 20/50 | |||
| SP05—3D—14—C20 A | 3D | 42 | 109 | 14 | 20/50 | |||
| SP05—3D—14.5—C20 A | 3D | 43.5 | 110.5 | 14.5 | 20/50 | |||
| SP05—3D—15—C20 A | 3D | 45 | 112 | 15 | 20/50 | |||
| SP05—3D—15.5—C20 A | 3D | 46.5 | 113.5 | 15.5 | 20/50 | |||
| SP05—3D—16—C20A | 3D | 48 | 115 | 16 | 20/50 | |||
| SP05—3D—16.5—C20 A | 3D | 49.5 | 116.5 | 16.5 | 20/50 | |||
| SP05—3D—17—C20 A | 3D | 51 | 118 | 17 | 20/50 | |||
| SP05—3D—17.5—C20 A | 3D | 52.5 | 119.5 | 17.5 | 20/50 | |||
| SP05—3D—18—C20A | 3D | 54 | 121 | 18 | 20/50 | |||
| SP05—3D—18.5—C20 A | 3D | 55.5 | 122.5 | 18.5 | 20/50 | |||
| SP06—3D—19—C20A | 3D | 57 | 124 | 19 | 20/50 | SPMG060204 | M2.5x6L | T8 |
| SP06—3D—19.5—C20 A | 3D | 58.5 | 125.5 | 19.5 | 20/50 | |||
| SP06—3D—20—C20 A | 3D | 60 | 127 | 20 | 20/50 | |||
| SP06—3D—20.5—C20 A | 3D | 61.5 | 128.5 | 20.5 | 20/50 | |||
| SP06—3D—21—C20 A | 3D | 63 | 130 | 21 | 20/50 | |||
| SP06—3D—21.5—C20 A | 3D | 64.5 | 131.5 | 21.5 | 20/50 | |||
| SP06—3D—22—C20 A | 3D | 66 | 133 | 22 | 20/50 | |||
| SP06—3D—22.5—C20 A | 3D | 67.5 | 134.5 | 22.5 | 20/50 | |||
| SP07—3D—23—C20 A | 3D | 69 | 136 | 23 | 20/50 | SPMG07T308 | M2.5x7L | |
| SP07—3D—23.5—C20 A | 3D | 70.5 | 137.5 | 23.5 | 20/50 | |||
| SP07—3D—24—C20 A | 3D | 72 | 139 | 24 | 20/50 |
